Uncompromising Performance in a Compact Form — Lenovo ThinkStation P3 Ultra
Power, flexibility, and intelligent design come together in the Lenovo ThinkStation P3 Ultra — a compact workstation engineered for professionals who need serious performance without the bulk. Equipped with a powerful Intel® Core™ i7-14700 processor with 20 cores (8 performance + 12 efficiency), this system delivers exceptional speed and responsiveness for demanding workflows such as 3D design, video editing, and AI development.
The NVIDIA® T400 4GB discrete GPU ensures smooth graphics rendering and multi-display support, while integrated Intel® UHD Graphics 770 offers efficient power usage during lighter tasks. With 16GB of DDR5 memory (expandable up to a massive 192GB) and a blazing-fast 512GB PCIe 4.0 NVMe SSD, you get lightning-quick multitasking, ample storage, and seamless performance, even under heavy load.
Despite its compact 3.6kg frame and ultra-small 3.43″ x 8.78″ x 7.95″ chassis, the P3 Ultra doesn’t compromise on expandability. It features two PCIe slots (one x16 and one x8), dual Ethernet ports (2.5GbE and GbE), Wi-Fi 6E with Bluetooth® 5.1, and an array of high-speed ports including Thunderbolt™ 4, USB 3.2 Gen 2, and multiple DisplayPorts. It’s ready for your complex peripheral setups and high-bandwidth data transfers.
Designed for durability, this workstation is MIL-STD-810H certified, ensuring it can handle real-world challenges. And with support for Intel® vPro® Enterprise, remote manageability and IT deployment become simple and secure.
Backed by a 3-year Premier Support onsite warranty, the Lenovo ThinkStation P3 Ultra offers peace of mind, enterprise-grade reliability, and unmatched performance — all in a remarkably small footprint.
PERFORMANCE
Processor:
Intel® Core™ i7-14700, 20C (8P + 12E) / 28T, Max Turbo up to 5.4GHz, 33MB Cache
AI PC Category:
AI-Ready Workstations
Graphics:
NVIDIA® T400, 4GB GDDR6
Integrated Intel® UHD Graphics 770
Chipset:
Intel® W680 Chipset
Memory:
1x 16GB SO-DIMM DDR5-4800 Non-ECC
Memory Slots:
Four DDR5 SO-DIMM slots, dual-channel capable
Max Memory:
Up to 192GB (4x 48GB DDR5 SO-DIMM)
Storage:
512GB SSD M.2 2280 PCIe® 4.0×4 Performance NVMe® Opal
Storage Support:
One M.2 2280 PCIe® 4.0×4 drive
Storage Slot:
One M.2 2280 PCIe® 4.0 slot
Card Reader:
None
Audio Chip:
High Definition (HD) Audio, Realtek® ALC897-Q codec
Speakers:
Not included
Camera:
Not included
Microphone:
Not included
Battery:
Not applicable (desktop)
Power Adapter:
300W 90% Adapter
DESIGN
Keyboard:
USB Traditional Keyboard, Black, English
Mouse:
USB Calliope Mouse, Black
Case Color:
Black
Case Material:
Industrial-grade chassis
Expansion Slots:
2x PCIe® (1x PCIe 4.0 x16, 1x PCIe 3.0 x8), low-profile
Dust Filter:
None
Dimensions (WxDxH):
87 x 223 x 202 mm (3.43 x 8.78 x 7.95 inches)
Weight:
3.6 kg (7.94 lbs, maximum configuration)
SOFTWARE
Operating System:
Windows® 11 Pro, English
Bundled Software:
None
CONNECTIVITY
Ethernet:
2x RJ-45 (1x 2.5GbE Intel® I225-LM, 1x GbE Intel® I210-AT)
WLAN + Bluetooth:
Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + BT5.1, vPro®
WWAN:
Not supported
SIM Card:
None
NFC:
None

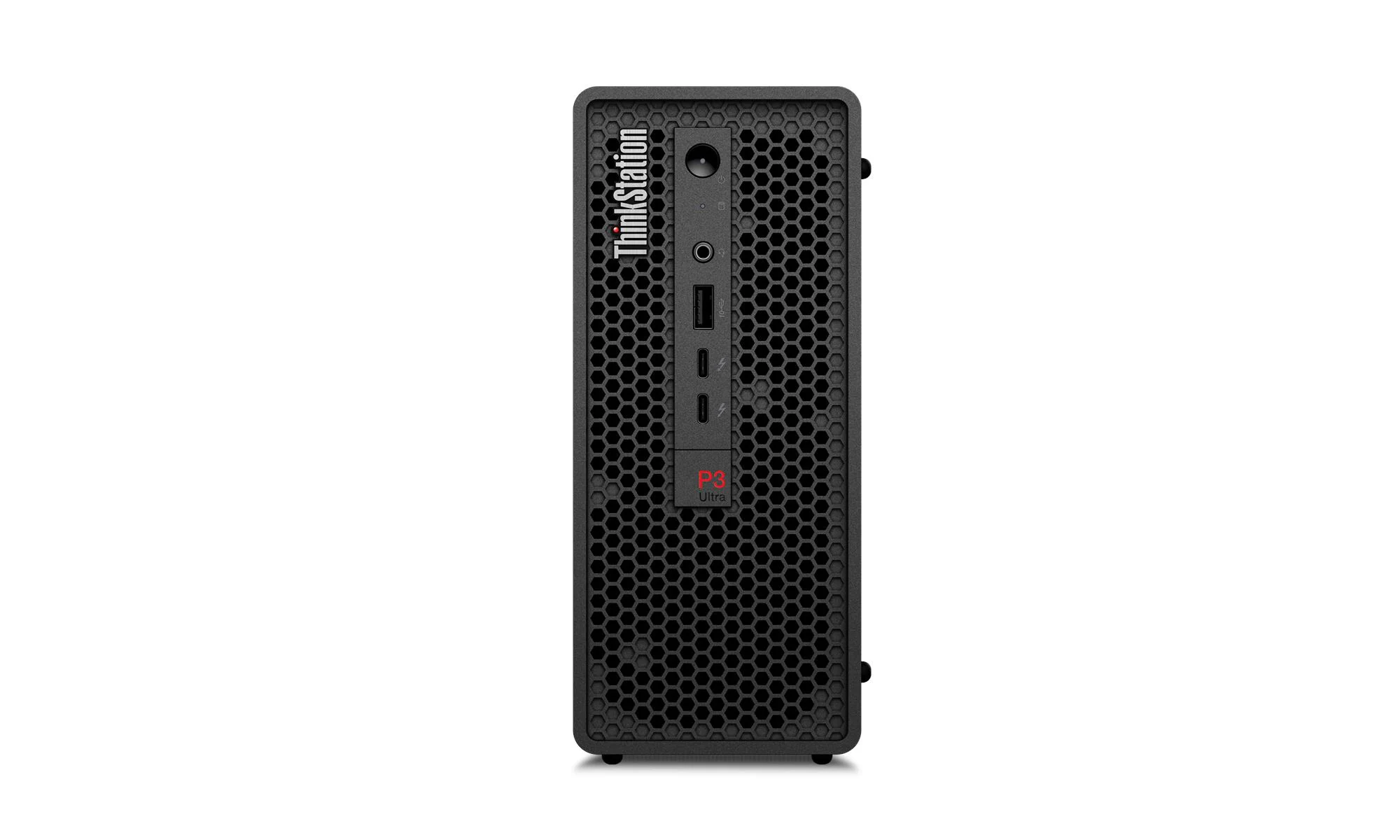

Front Ports:
2x Thunderbolt™ 4
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x Headphone / microphone combo jack (3.5mm)

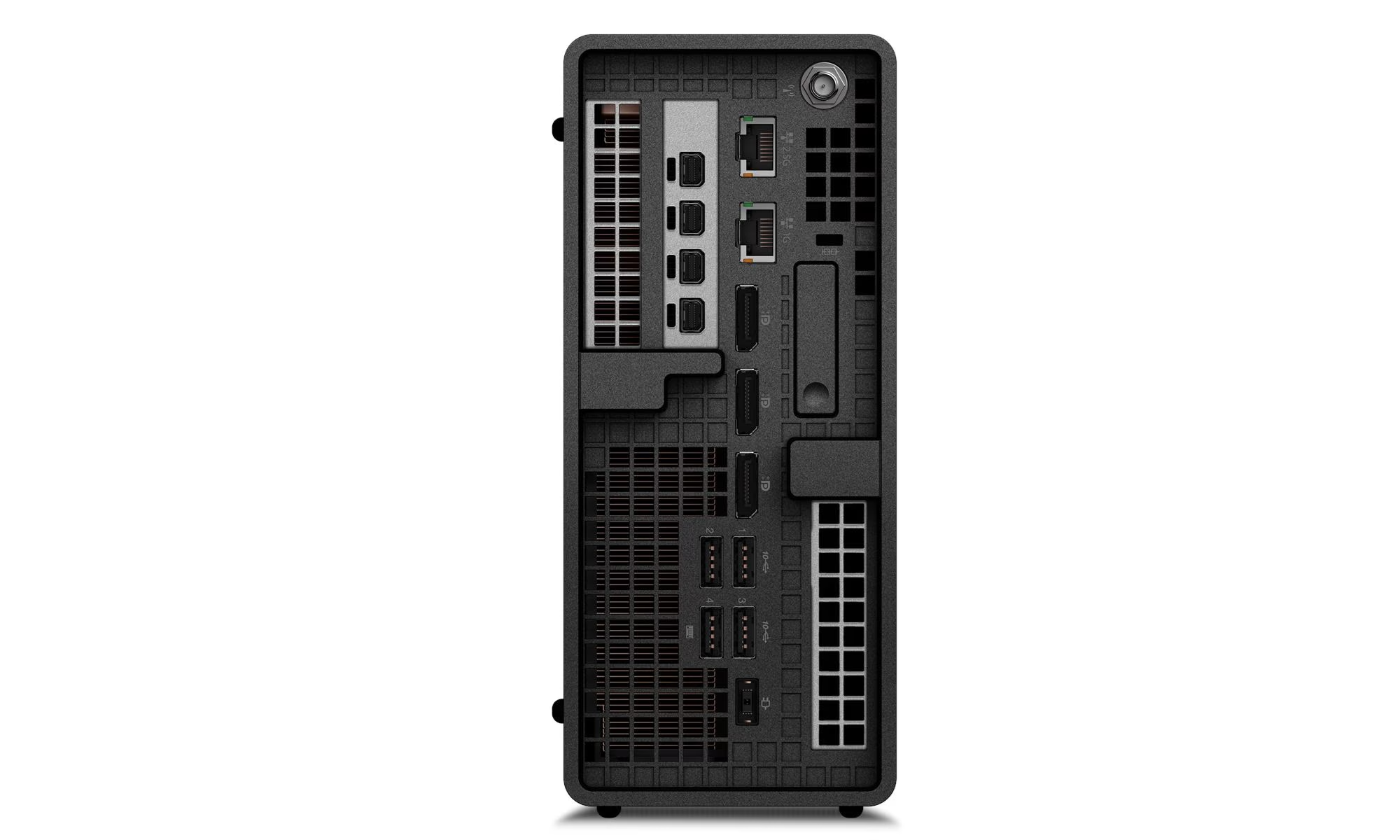

Rear Ports:
4x USB-A (USB 10Gbps / USB 3.2 Gen 2)
3x DisplayPort™ 1.2
1x Ethernet (2.5GbE RJ-45)
1x Ethernet (GbE RJ-45)
Optional Ports (configured):
3x mini DisplayPort 1.4 (on NVIDIA® T400 4GB)
Docking:
Compatible with USB-C® and Thunderbolt™ docking solutions
SECURITY & PRIVACY
Smart Card Reader:
None
Security Chip:
Discrete TPM 2.0, TCG and FIPS 140-2 certified
Fingerprint Reader:
None
Physical Locks:
Kensington® Security Slot™, 3 x 7 mm
Other Security:
Chassis Intrusion Switch
MANAGEABILITY
System Management:
Intel® vPro® Enterprise with Intel AMT 16
SERVICE
Base Warranty:
3-year, Onsite
Included Upgrade:
3Y Premier Support Upgrade from 3Y Onsite
ACCESSORIES
Bundled Accessories:
USB Keyboard and Mouse
CERTIFICATIONS
Green Certifications:
ENERGY STAR® Certified
EPEAT™ Registered
RoHS compliant
Mil-Spec Test:
MIL-STD-810H military test passed
ISV Certifications:
Please visit ISV certifications for Lenovo® Workstations
ThinkStation P3 Ultra desktop workstation
300W 90% efficiency power adapter
Power cord
USB Traditional Keyboard (Black, English)
USB Calliope Mouse (Black)
Quick Start Guide & Safety/Warranty documentation
