The Lenovo ThinkCentre M90q Gen 6 delivers powerful business-grade performance in an ultra-compact 1-liter chassis designed for modern professional environments. Powered by the Intel® Core Ultra 5 235 processor with 14 cores, this AI-ready desktop provides fast, efficient multitasking for office productivity, data work, web applications, video conferencing, and professional workloads.
Equipped with 32GB of DDR5-5600 RAM and a fast 512GB PCIe 4.0 NVMe SSD, the M90q Gen 6 ensures responsive performance with room to grow. With dual SO-DIMM memory slots supporting up to 64GB, and support for up to three M.2 PCIe SSDs, storage and memory upgrades are simple and future-proof.
Despite its compact size, connectivity is extensive: multiple USB-A and USB-C ports, HDMI 2.1, DisplayPort 1.4, Wi-Fi 6E, Bluetooth 5.3, and Gigabit Ethernet support versatile setups and multi-monitor environments. Featuring enterprise-grade security like TPM 2.0, Kensington lock slot, and a chassis intrusion switch, the M90q Gen 6 protects data and hardware in professional and commercial deployments.
Tested to MIL-STD-810H military durability standards, the ThinkCentre M90q Gen 6 is engineered to withstand real-world business conditions while maintaining quiet, reliable operation. Its compact footprint allows mounting behind a monitor, under a desk, or vertically using the included stand — ideal for offices, healthcare, retail, education, conference rooms, and home workstations.
Whether you’re upgrading an existing office fleet or building a compact high-performance workstation, the ThinkCentre M90q Gen 6 delivers the perfect balance of size, security, and productivity.
Processor:
Intel® Core Ultra 5 235, 14C (6P + 8E) / 14T, Max Turbo up to 5.0GHz, 24MB Intel Smart Cache
Graphics:
Integrated Intel® Graphics
Chipset:
Intel® Q870 Chipset
Memory:
1x 32GB SODIMM DDR5-5600
Memory Slots:
Two DDR5 SODIMM slots, dual-channel capable
Max Memory:
Up to 64GB (2x 32GB DDR5 SODIMM)
Storage:
512GB SSD M.2 2280 PCIe® 4.0×4 NVMe® Opal 2.0
Max Storage Support:
Up to three drives:
3x M.2 2280 SSD (up to 2TB each)
Storage Slots:
Three M.2 PCIe 4.0 x4 slots
Card Reader:
None
Optical:
None
Audio Chip:
High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec
Speakers:
Premium 2W speaker (1x)
Camera:
None
Microphone:
None
Battery:
N/A (Desktop)
Power Adapter:
135W 90% Adapter
Case Color:
Black
Case Material:
Metal / Industrial-grade composite
Keyboard:
USB Traditional Keyboard, Black, English
Mouse:
USB Calliope Mouse, Black
Pen:
Pen Not Supported
Form Factor:
Tiny (1L)
Dimensions (WxDxH):
179 x 182.9 x 36.5 mm
(7.05 x 7.2 x 1.44 inches)
Weight:
1.34 kg (2.95 lbs)
Operating System:
Windows® 11 Pro, English
Bundled Software:
None
WLAN + Bluetooth:
Intel® Wi-Fi® 6E AX211, 802.11ax 2×2 + Bluetooth 5.3, vPro®
WWAN:
Non-WWAN
SIM Card:
None
Ethernet:
Integrated Gigabit Ethernet (RJ-45)
NFC:
None

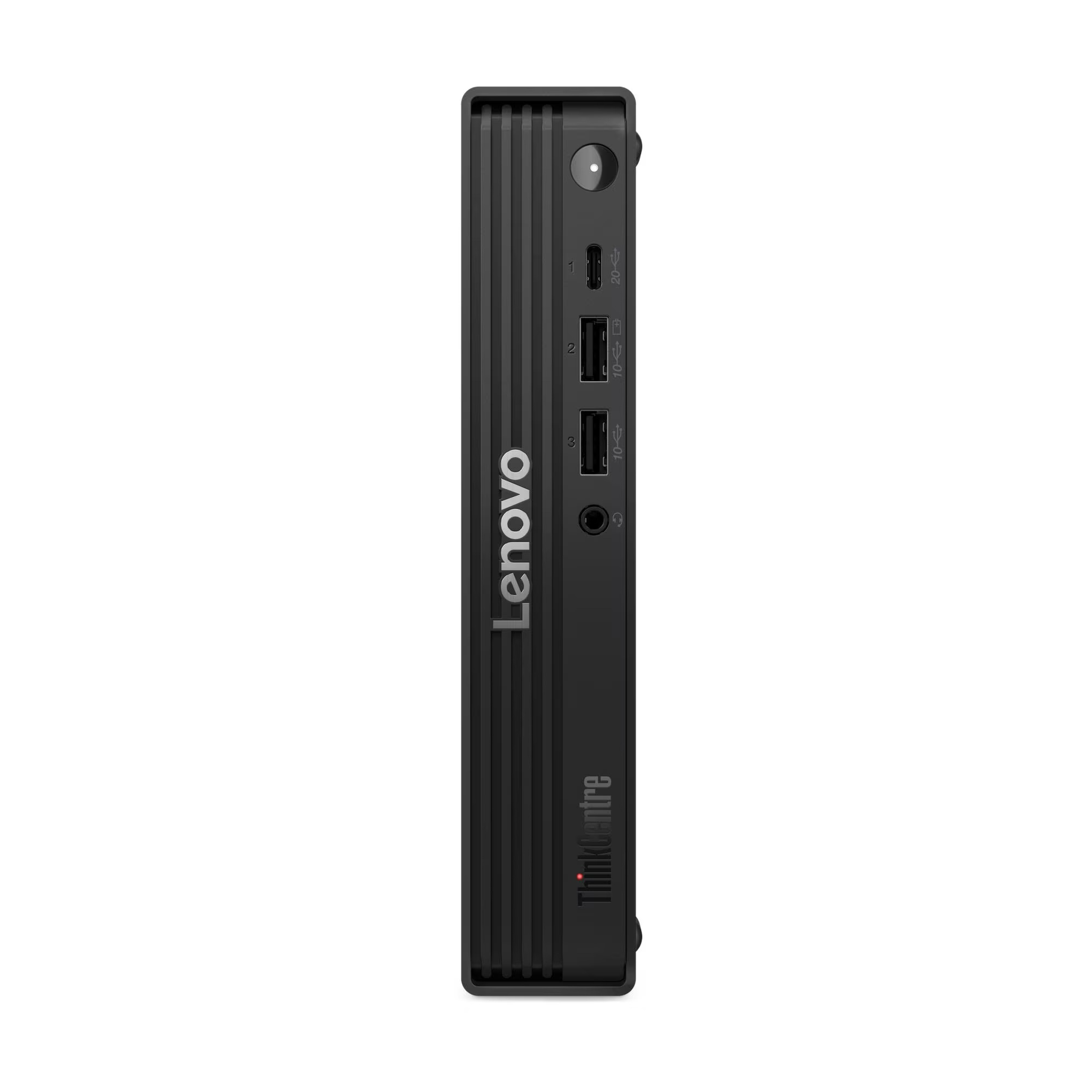

Front:
1x USB-C® (USB 20Gbps / USB 3.2 Gen 2×2, data only)
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x Headphone / microphone combo jack (3.5mm)

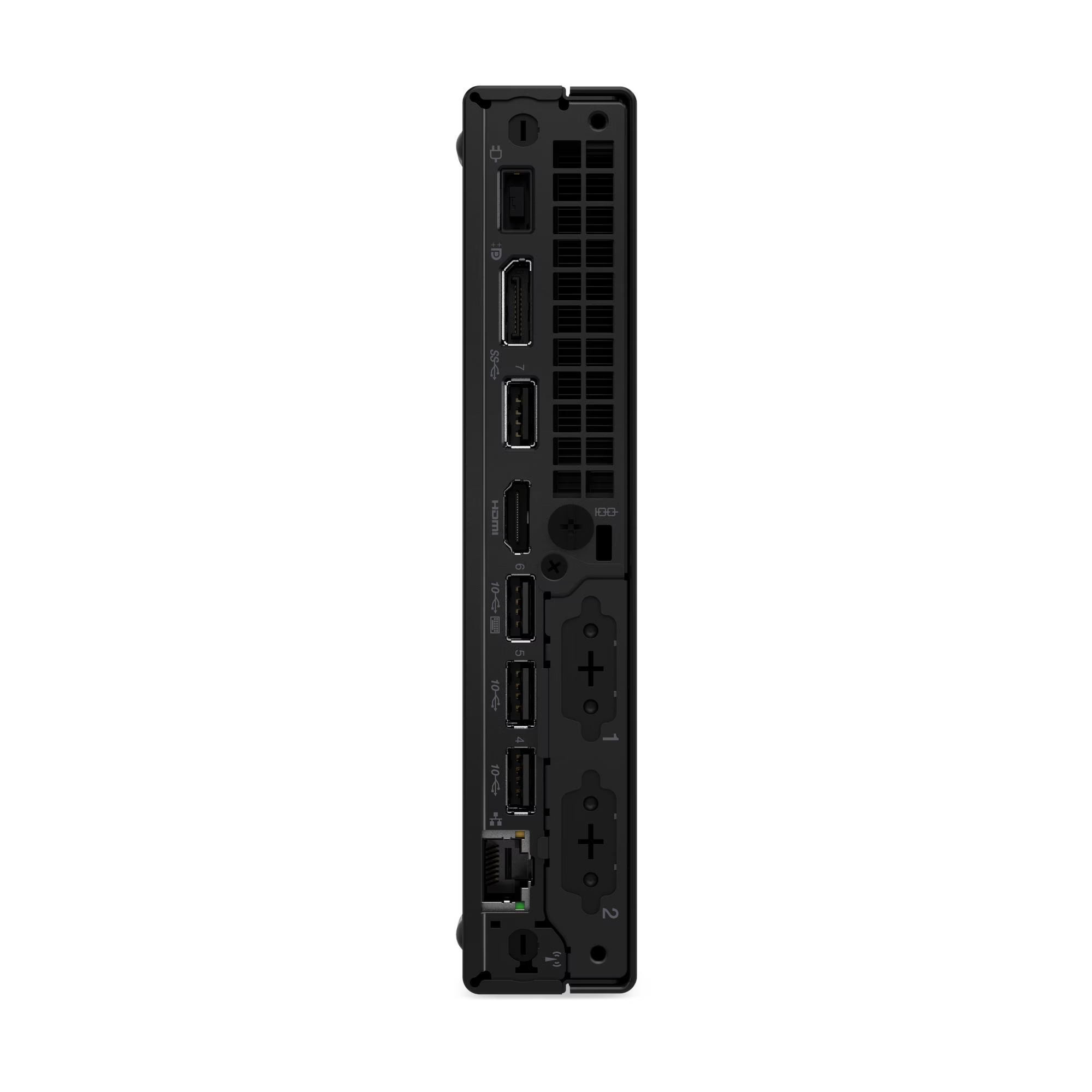

Rear:
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
3x USB-A (USB 10Gbps / USB 3.2 Gen 2), one supports Smart Power On
1x HDMI® 2.1
1x DisplayPort™ 1.4
1x Ethernet (GbE RJ-45)
Docking:
Supports various USB-C® docking solutions
Security Chip:
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Fingerprint Reader:
None
Physical Locks:
Kensington® Security Slot™, 3 x 7 mm
Other Security:
Chassis Intrusion Switch
System Management:
Intel® vPro® Enterprise
Base Warranty:
3-year, Onsite
Included Upgrade:
None
Bundled Accessories:
USB Keyboard & USB Mouse
Vertical Stand Included
Green Certifications:
ENERGY STAR® 9.0
ErP Lot 3
RoHS compliant
TCO Certified, Gen 10
Mil-Spec Test:
MIL-STD-810H passed
Lenovo ThinkCentre M90q Gen 6 Tiny Desktop
135W AC Power Adapter
Vertical stand / desktop positioning stand
USB Calliope Mouse
USB Traditional Keyboard
Setup & documentation
